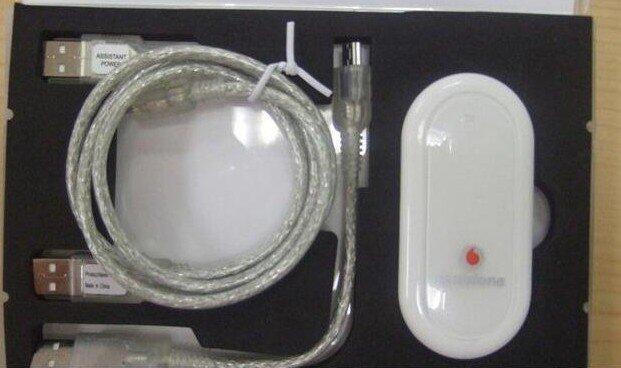

Huawei E220 Vodafone USB 7.2Mbps with Original Box Packaging
Spoiler for Overview:
The Huawei E220 is a Huawei HSDPA access device (modem) manufactured by Huawei and notable for using the USB interface (USB modem).
Technically it is a modem, USB and (due to the CDfs format) virtual CD-ROM device.
Launched on 21 June 2006, the device is used for wireless Internet access using 3.5G, 3G, or 2G mobile telephony networks. It supports UMTS (including HSDPA), EDGE, GPRS and GSM.
E220 works well with Linux, as support for it was added in Linux kernel 2.6.20, but there are workarounds for distributions with older kernels. The card is also supported by Vodafone Mobile Connect Card driver for Linux, and it is possible to monitor the signal strength through other Linux applications.
Most 3G network operators bundle the device with a contract, with some operators simlocking the device . Unlocked and unbranded modems can also be bought
The device contains not only the cellular antenna but also about 22 MB (10 MB on older versions) of storage memory accessible to the operating system as a USB mass storage device formatted with CDfs, thus emulating a CD-ROM drive. In this memory, E220 devices supplied by mobile operators may contain 3G dialer software written by the operator, while Huawei-branded devices contain Huawei's original dialing software, which they call 'Dashboard'. Huawei's Dashboard and updates for it are also available from Huawei's website, or the 11.313.02.00.01 firmware for 7.2 Mbit/s from NetCom (in reality 'flashing' this device means writing a firmware image to its internal flash memory, which is different from "updating the dashboard", which is simply writing a new CDFS disc image to the USB mass storage device that appears in the operating system). Flashing the firmware of this device doesn't change the USB Mass Storage memory used for the operator's software, therefore connection settings (such as APN) will be retained. When the device is first attached, Windows will automatically run the software stored on it, unless that feature has been turned off in Windows. This feature can be bypassed by pressing the Shift key while attaching the device, or by turning off the autostart feature entirely. It is possible to remove the operator branding by flashing the device with Huawei's Mobile Partner software. Huawei does not publicly release firmware updates for its devices, only Dashboard updates. The standard way of obtaining firmware updates is through the service provider, however some firmware updates are publicly available over the Internet and some users have cross-flashed (i.e. using a firmware provided by service provider "X" with modem supplied by service provider "Y") their modems without trouble. Updating the modem's Dashboard does not remove or affect the network-lock (that may be in effect with modems purchased subsidized from a service provider) that prevents you from using the modem with any service provider. However updating the modem's firmware may remove this network-lock or even the opposite, turn a network-lock free modem into a locked one.
Novatel Wireless Ovation MC990D HSUPA USB Stick
Spoiler for Overview:
Peak download speeds to 7.2 Mbps and upload speeds of 2.1 Mpbs for web surfing, email, VPNs, and more. Use in home, office, on the road - virtually anywhere for on the go mobility. Works in North America, Europe, Japan, and countries around the work in supported bands.
Small compact USB mobile broadband data modem. Only 70 x 25 x 12 mm (L x W x H), suitable for home, office and when mobile.
No installation - Mobilink Lite Connection Manager is pre-installed, flashed in the USB modems memory. Dashboard customization as well as multiple languages is also available. MobiLink Software Development Kit (SDK) can be used for integration of third party dashboards.
Multi-color LED indicator for real-time service status, technology modes, and error conditions
Built-in 5 bands (integrated)
High efficiency broadband
One piece with integrated antenna
Supports Microsoft Vista, Windows® 2000, XP, Mac OS® X; Linux*
Small & Compact
Large data files can be sent and received more quickly
Secure internet access
Dependable, reliable product

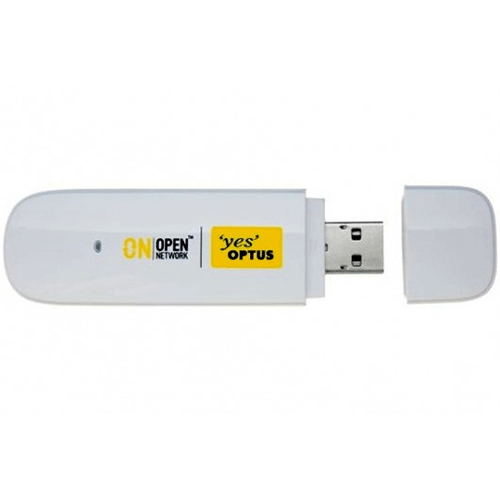

Huawei E353 HiLink Mobile Broadband HSPA + 3.75G USB Modem 21.1Mbps
Spoiler for Overview:
The Huawei E353 is the second modem from Three to support download speeds of up to 21.1Mbps and upload speeds up to 5.76Mbps.
The E353 uses the latest Qualcomm 8200A chipset which features network enhancements to provide a better experience while on the move and supports all major operating systems including Windows Vista, Windows 7 and Mac OS.
Manufacturer : Huawei
Model : E353
Network Band : HSDPA / 3G / HSPA / UMTS - 2100MHz.
Data Speed (max) : Download 21.1 Mbps, Upload 5.6 Mbps
Memory : Micro SD slot (up to 32GB).
Port : USB1 and USB2 (Plug and Play)
Antenna : Internal Antenna & External antenna socket (CRC9)
Dimensions : 89 x 27 x 12mm
Weight : 26g .
Supported Systems : Windows XP, Vista, 7, Mac OS.

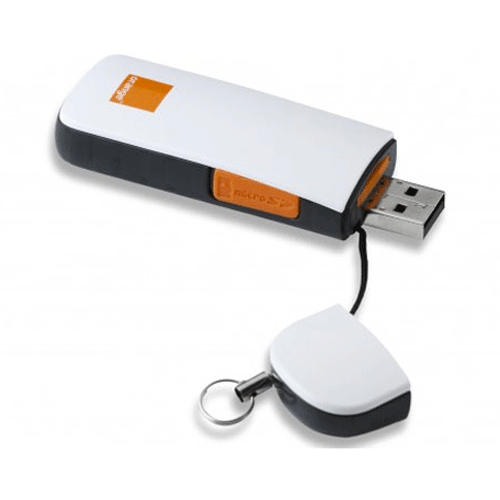

Option iCON 515M HSPA+ 14.4 Mbps

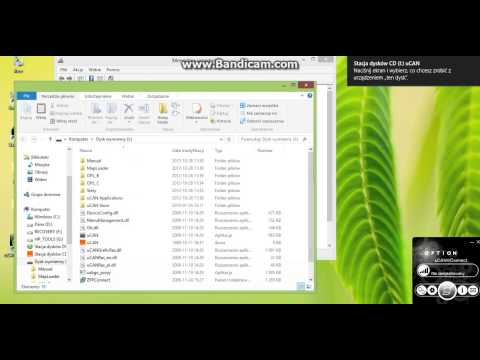

Spoiler for yang mau install di Win 8:
Spoiler for Overview:
Combining ultra-compact and stylish design the iCON® 515M delivers blisteringly fast internet on the go. With download speeds of up to 14.4 Mbps and upload speeds of up to 5.76Mbps, it can easily transfer large files or handle high-quality streaming media at speeds that match or exceed those found in many homes and offices.
Compatible with almost all popular computers, the iCON® 515M is ideal for those with an active mobile lifestyle, offering exceptional reliability and excellent ease-of-use.
The styling is exceptional, too – with a sleek matt black body and complemented by an elegant cross-hatched finish the iCON® 515M embodies an understated air of sophistication.
Ultra-compact and lightweight, super fast and good looking – the iCON® 515M really does have it all.
Blistering speeds with dazzling looks
Super fast: Downloads up to 14.4 Mbps, uploads up to 5.76Mbps
Compact and lightweight: just 6cm long (inserted) and 29g
Future proof through easy internet upgrades
Access anywhere in Europe
Zero-CD® Plug 'n' Play technology
HSUPA/HSDPA/UMTS Air Interface
WCDMA 900/2100* MHz > Release 6 compliant
HSDPA Category 10 (14.4Mbps)
HSUPA Category 6 (5.76Mbps)
UE Power Class 3 EDGE/GSM Air Interface
EDGE Power Class E2, GSM Power Class 1 at 1800/1900 Mhz and Power Class 4 at 850/900 Mhz
Coding scheme UL & DL - CS 1-4, MCS 1-9
Multislot (E)GPRS Class 12, (E)GPRS Class B Type 1 MT
Streaming, Background and Interactive QoS Classes Supported
Terminal Equipment Interfaces
Drivers: Windows ®XP (Pro & Home), Windows Vista® 32/64bit, Mac OS X and Linux
SIM-ME interface as specified in 3GPP >>GSM TS11.11 and GSM 11.12 with compliance to ISO 7816
SIM application toolkit support
NDIS or Standard modem emulation for com>>patibility with terminal programs/diallers and for use with proprietary operating systems. AT Interface 3GPP TS27.005, ATD*99# and ATD*99***# support
Multiple communication ports for simultaneous >>data call and network coverage reports
Single, green LED
Supporting 1.8 and 3V UICCs
SIM card interface compliant with 3GPP >>31.101 and 31.102
USB 2.0, backward compatible to USB 1.1 >>
118MB of memory for operator applications >>and files

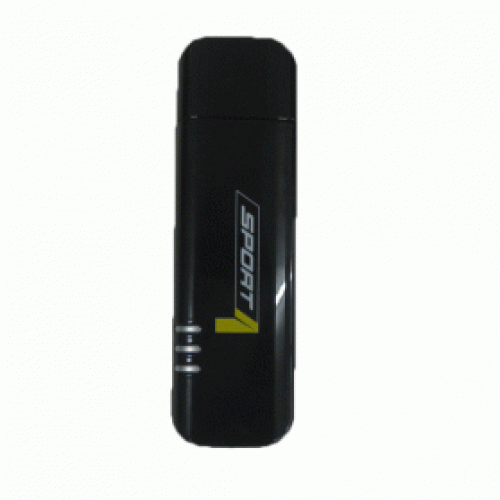

Huawei E160E Sport 3.6Mbps HSDPA
Spoiler for Overview:
Support 7.2Mbps HSDPA services
MicroSD Card Slot
Support PC voice (optional) and SMS services
Support data statistics
Plug & Play
Support Windows 2000/XP/Vista and Mac Operating Systems
Huawei E160E USB Stick Modem HSDPA/3G Datacard
1. Main Features
Micro SD Memory Slot, so can act as a Memory stick. (up to 4GB)
Able to add external Antenna incase signal not enough strong.
Smaller and More compact.
Stable and Reliable.
Compatible with Windows 2000, XP & Vista operating systems and MacOS.
Zero CD Technology: No CD Requires, Auto plug and play. Simple and easy.
- Technical standard
HSDPA/UMTS: 3GPP R99, R5
GSM/GPRS/EDGE: 3GPP R99
- Operating frequency
- Support Speed
Maximum download speed : 3600 kbps (7.2Mbps in Future Network Developments)
Maximum upload speed : 384 kbps
- External interface
Mini USB interface: supporting USB 2.0 Full Speed
Antenna: Internal antenna
External Antenna Slot: Able add external antenna.
With Extra Micra SD Mermory Slot (up to 4GB).
SIM/USIM card: standard 6 PIN SIM card interface
70.1 mm (D) x 25.7 mm (W) x 11.6 mm (H)
- LED indicator
Green Light You are connected to the GPRS/EDGE network (fast)
Blue Light You are connected to the 3G network (faster)
Cyan Light You are connected to the HSDPA or Turbo network (fastest)
