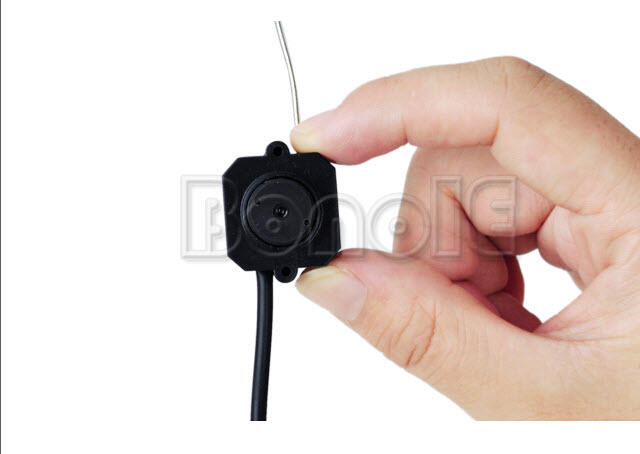

Wireless Hidden CCTV + Receiver
Kondisi Barang : Baru
Harga : Rp 500.000
Location : Jawa Barat
Wireless Hidden CCTV + Receiver
Wireless Hidden CCTV + Receiver

Type: Video Camera
Brand Name: OEM
Sensor: CCD
Style: Mini Camera
Model Number: S-SW001
Special Features: Hidden
Sensor: CMOS
Function: Wireless Camera
Receiving Frequency: 0.9/1.2Ghz
Place of Origin: China (Mainland)

Camera Parameter:
(1)Camera Apparatus: 1/3 Picture Sensor
(2)System: PAL/CCIR ; NTSC/EIA
(3)Validity Pixel: PAL: 628 x 582
(4)NTSC: 510 x 492
(5)Picture Area: PAL: 5.78 x 4.19mm
(6)NTSC: 4.69 x 3.45mm
(7)Horizontal Definition: 380TV Line
(8)Scan Frequency: PAL/CCIR: 50HZ
(10)Sensitivity: +18DB-AGL ON-OFF
(11)Power Output: 200MW
(12)Frequency Output: 0.9G/1.2G
(13)Frequency Control: Adopt CPU Frequency Lock the Wreath to Control, Stability with High Frequency
(14)Transmission Signal: Picture, Sound
(15)Deliver the Distance: 50-100M
(16)Voltage: DC+8V
(17)Current: 200mA
(18)Power Consumption:

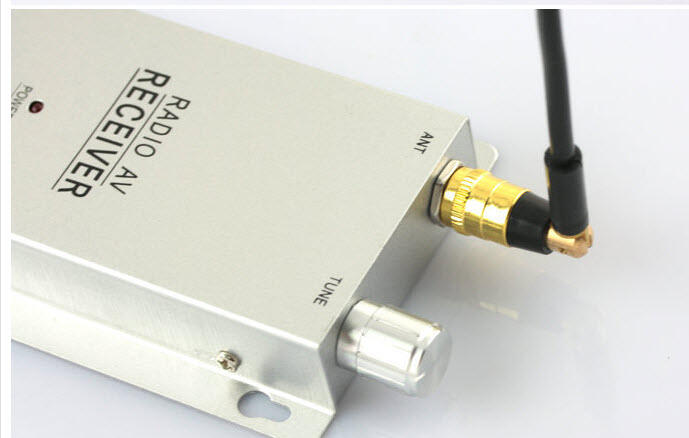

Wireless Hidden CCTV + Receiver

(1)Operation Frequency: 1.2GHz
(2)Output: Video and Audio RCA Jack
(3)Voltage: 9-12V DC
(4)Power Consumption: 1.2W

Wireless Hidden CCTV + Receiver

1. Wireless transmitting Picture & Sound.
2. Small size, light weight, low power consumption.
3. High sensibility, easy operation and installation.
4. Weight: 340g

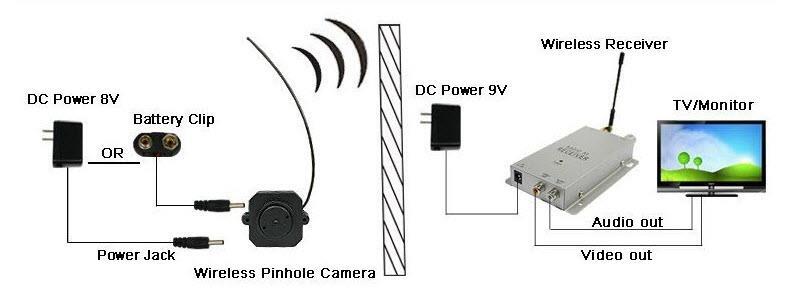

1. Connect the antenna with the receiver.
2. Plug power jack of DC 9V/12V power supply into the power socket of the receiver (the power indicator is on).
3. Connect the output of receiver with monitor with AV wire.
4. Plug power jack of DC 8V power supply into the power socket of the camera (battery of the same voltage is acceptable).

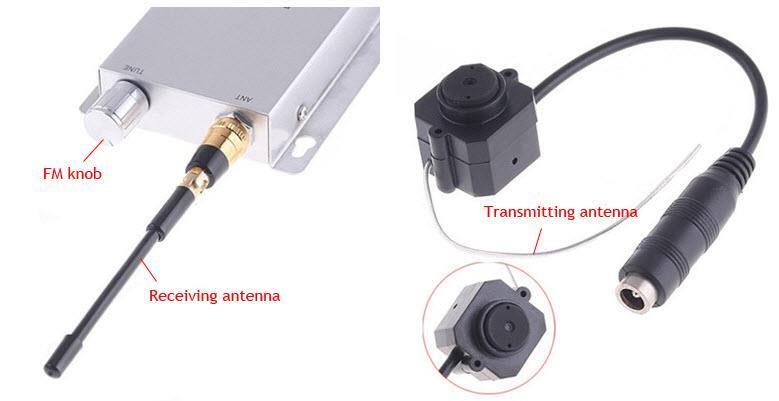

5. Fine tune to the desired position (until the image of wireless camera is received).
6. Adjust the lens of the camera to best position.

Suitable for monitoring children, old people and houses, companies, shops and factories, etc

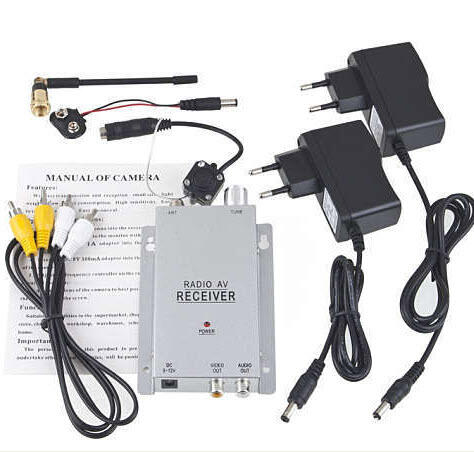

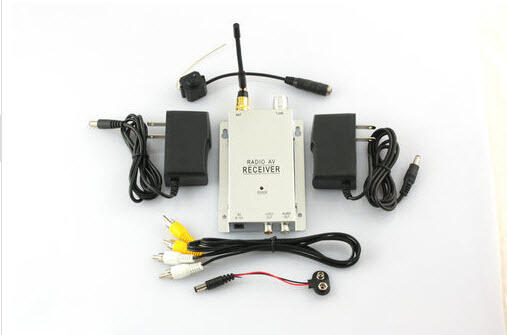

Item Includes:

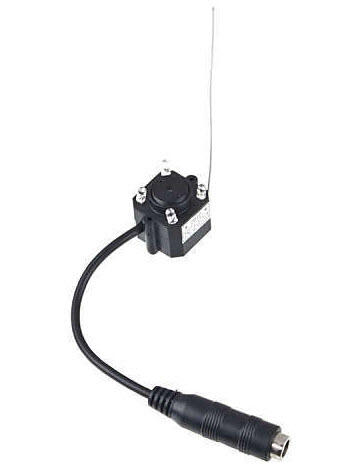

1 x 1.2GHz Security CCTV Wireless CMOS Color Video&Audio Camera
1 x 1.2GHz Security CCTV Wireless Radio AV Receiver
2 x Power supplies
1 x RCA Cable
1 x Battery clip for camera

Wireless Hidden CCTV + Receiver

Pemesanan :
Sms / tlp ke no 089679749266

Untuk daerah Bandung utamakan COD,
Untuk Daerah Luar Bandung pembayaran melalui transfer Bank (Bank Mandiri atau BRI)

Pengiriman :
Harga Belum Termasuk Ongkir
Pengiriman Menggunakan Jasa JNE (Memudahkan Tracking barang)

Jika berminat silahkan Hubungi :
Fajar Nur Apriyandi
