Carvin TRX153
Kondisi Barang : Baru
Harga : Rp 4.700.000
Location : Banten
Carvin TRX153
Carvin TRX153
Carvin TRX153


Link ke profil saya
[URL="http://melodiamusik20.tokobagus.com "]http://melodiamusik20.tokobagus.com [/URL]

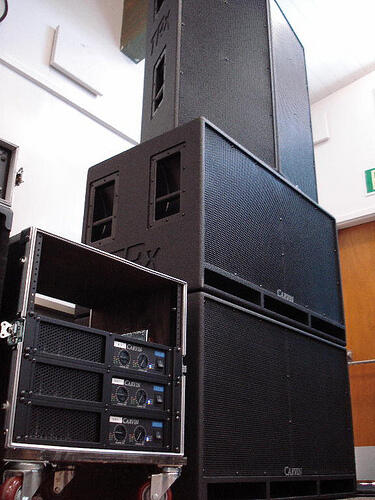

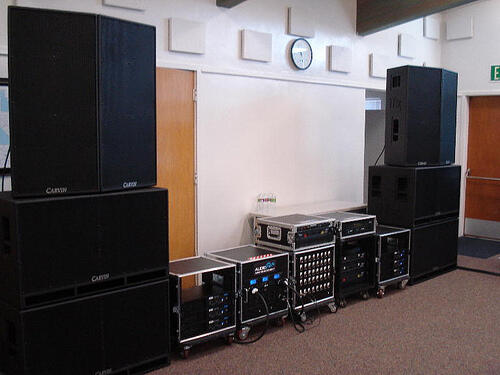

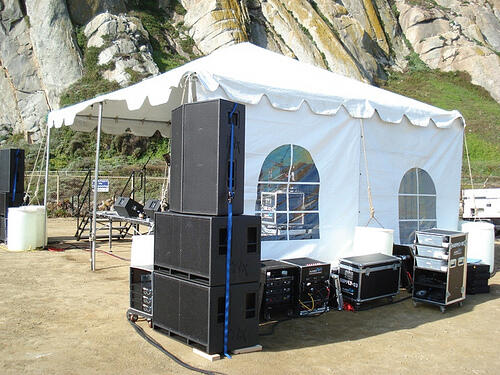

The TRx153 can be run passively with its computer tuned internal passive crossover or it can be completely switched out for full triamp access through an NL8 Speakon™ connector. Ideally matched to the TRx218, the TRX153 can be stacked on top of a vertical TRx218 for an over the crowd 7 foot tower or stacked side by side with another TRx153 on a horizontally laid TRx218 for 120 degrees of coverage. The TRx153 includes 12 fly points for flying one or a full concert array.

Frequency response: 62 Hz to 20 kHz +/- 3dB
Useable Low Frequency: 50 Hz (-10dB)
Impedance / Power Handling:
Full Range Passive: 8 ohms / 600 Wrms, 1200 Wpeak
Tri Amped:
LF: 8 ohms / 600 Wrms
MF: 16 ohms / 200 Wrms
HF: 16 ohms / 60 Wrms Sensitivity: (SPL 1W/1M)
Full Range Passive: 99 dB
Tri Amped:
LF: 100 dB
MF: 102 dB
HF: 105 dB
Directivity: 60 deg.
Horizontal 40 deg.
Vertical Connections: Neutrik NL4 and NL8 connectors
Configurations:
Full Range Passive or Triamp Enclosure: Cross grain laminated 13 ply Baltic birch
Finish: Black DuraTex
Size: 20"WF x 12.75WB x 17.25D x 41.75H", 95 lbs
