Jual Planet Switch-M dan Core switch
Kondisi Barang : Baru
Harga : Rp 123
Location : DKI Jakarta

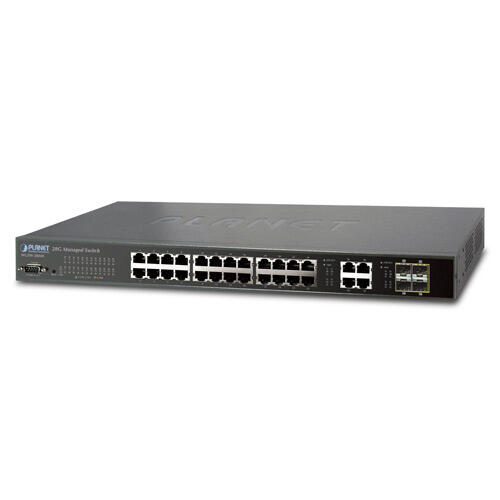

Quote:Original Posted By (WGSW-28040)


Spoiler for (switch1):



Physical Port
  • 28-Port 10/100/1000Base-T Gigabit RJ-45 copper
  • 4 100/1000Base-X mini-GBIC/SFP slots, shared with Port-25 to Port-28
  • RS-232 DB9 console interface for Switch basic management and setup

Layer 2 Features
  • Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control
   (Full-Duplex)
  • High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous
   packets to optimize the network bandwidth
  • Supports VLAN
    - Management VLAN
    - IEEE 802.1Q Tagged VLAN
    - Up to 256 VLANs groups, out of 4094 VLAN IDs
    - Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
    - Private VLAN Edge (PVE / Port Isolation)
    - IP Subnet VLAN
    - Voice VLAN
  • Supports Spanning Tree Protocol
    - STP, IEEE 802.1D (Spanning Tree Protocol)
    - RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
    - MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
    - BPDU Guard
  • Supports Link Aggregation
    - IEEE 802.3ad Link Aggregation Control Protocol (LACP)
    - Cisco ether-channel (Static Trunk)
    - Maximum 8 trunk groups, up to 8 ports per trunk group
    - Up to 16Gbps bandwidth (Duplex Mode)
  • Provides Port Mirror (many-to-1)
  • Port Mirroring to monitor the incoming or outgoing traffic on a particular port

Quality of Service
  • Ingress / Egress Rate Limit per port bandwidth control
  • 8 priority queues on all switch ports
  • Traffic classification
    - Port-Based priority
    - IEEE 802.1p CoS
    - IP DSCP of IPv4/IPv6 packets
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • DSCP remarking

Multicast
  • Supports IGMP Snooping v1, v2 and v3
  • Querier mode support
  • IGMP Snooping v2 fast leave
  • Unknown Multicast drop

Security
  • Storm Control support
    - Broadcast / Multicast / Unknown-Unicast / Unknown-Multicast
  • Authentication
    - IEEE 802.1X Port-Based network access authentication
    - Built-in RADIUS client to co-operate with the RADIUS servers
  • Access Control List
    - IP-Based ACL
    - MAC-Based ACL
  • MAC Security
    - Static MAC
    - Source / Destination MAC Filtering
    - Port Security for Source MAC address entries filtering
  • DHCP Snooping to filter un-trusted DHCP message
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevent IP spoofing attacks

Management
  •IPv6 / IPv4 Dual Stack
  • Switch Management Interfaces
    - Console / Telnet Command Line Interface
    - IPv4 and IPv6 Web switch management
    - SNMP v1, v2c & v3 switch management
    - SSH / SSL secure access
  • Four RMON groups (history, statistics, alarms, and events)
  • SNMP trap for interface Link Up and Link Down notification
  • SNTP (Simple Network Time Protocol)
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • Firmware upload/download via HTTP / TFTP
  • DHCP Relay
  • DHCP Option 82
  • Link Layer Discovery Protocol (LLDP) Protocol
  • Event message logging to remote Syslog server
  • Reset button for system reboot or reset to factory default
  • IP Stacking management up to 16 units
Price
6.000.000 IDR

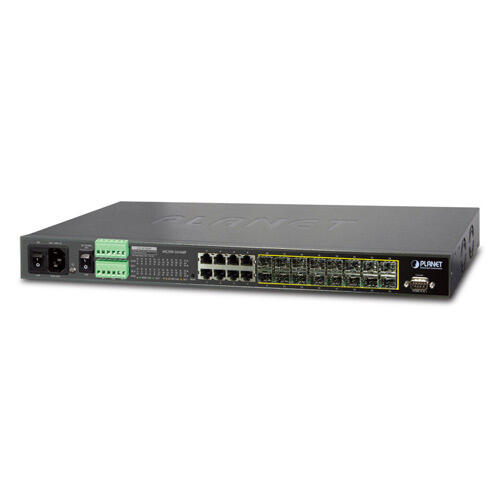

Quote:Original Posted By (MGSW-24160F)


Spoiler for (switch2):

Physical Port
  • 16 100/1000Base-X SFP mini-GBIC slots from port 9 to port 24
  • 8-Port 10/100/1000Base-T Gigabit Ethernet RJ-45
  • RS-232 DB9 console interface for Switch basic management and setup

Hardware Conformance
  • 36 to 72V DC, redundant power with polarity reverse protect function
  • -10 to 60 Degree C operating temperature
  • 19-inch Rack-mountable
  • Relay alarm for port breakdown, power failure
  • Two Thermal FAN built in

Layer 2 Features
  • Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control
   (Full-Duplex)
  • High performance of Store-and-Forward architecture, broadcast storm control and runt/CRC
   filtering eliminate erroneous packets to optimize the network bandwidth
  • Storm Control support
    –Broadcast / Multicast / Unknown-Unicast
  • Supports VLAN
    –IEEE 802.1Q Tagged VLAN
    –Up to 255 VLANs groups, out of 4094 VLAN IDs
    –Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
    –Private VLAN Edge (PVE)
    –Voice VLAN
  • Supports Spanning Tree Protocol
    –STP, IEEE 802.1D Spanning Tree Protocol
    –RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
    –MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
    –BPDU Guard
  • Supports Link Aggregation
    –802.3ad Link Aggregation Control Protocol (LACP)
    –Cisco ether-channel (Static Trunk)
    –Maximum 12 trunk groups, up to 16 ports per trunk group
    –Up to 32Gbps bandwidth (Duplex Mode)
    –Provides Port Mirror (many-to-1)
  • Port Mirroring to monitor the incoming or outgoing traffic on a particular port

Quality of Service
  • Ingress Shaper and Egress Rate Limit per port bandwidth control
  • 4 priority queues on all switch ports
  • Traffic classification:
    –IEEE 802.1p CoS
    –TOS / DSCP / IP Precedence of IPv4/IPv6 packets
    –IP TCP/UDP port number
    –Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Supports QoS and In/Out bandwidth control on each port
  • Traffic-policing policies on the switch port
  • QoS Control List Wizard makes QoS creation and configuration easier and more quickly
  • DSCP remarking

Multicast
  • Supports IGMP Snooping v1, v2 and v3
  • Querier mode support
  • IGMP Snooping port filtering
  • Multicast VLAN Registration (MVR) support

Security
  • IEEE 802.1x Port-Based / MAC-Based network access authentication
  • Built-in RADIUS client to co-operate with the RADIUS servers
  • TACACS+ login users access authentication
  • RADIUS / TACACS+ users access authentication
  • IP-Based Access Control List (ACL)
  • MAC-Based Access Control List
  • Source MAC / IP address binding
  • DHCP Snooping to filter un-trusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • Auto DoS rule to defend DoS attack
  • IP address access management to prevent unauthorized intruder

Management
  • Switch Management Interfaces
    –Console / Telnet Command Line Interface
    –Web switch management
    –SNMP v1, v2c, and v3 switch management
    –SSH / SSL secure access
  • Four RMON groups (history, statistics, alarms, and events)
  • IPv6 IP Address / NTP / DNS management
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • Firmware upload / download via HTTP / TFTP
  • DHCP Relay and Option 82
  • User Privilege levels control
  • NTP (Network Time Protocol)
  • Link Layer Discovery Protocol (LLDP) Protocol
  • Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
  • Reset button for system reboot or reset to factory default
  • PLANET Smart Discovery Utility for deploy management
  • ICMPv6

Redundant Power System
  • 100~240V AC / 36~72V DC Dual power redundant
  • Active-active redundant power failure protection
  • Backup of catastrophic power failure on one supply
  • Fault tolerance and resilience

Digital Input / Digital Output
  • 2 Digital Input (DI)
  • 2 Digital Output (DO)
  • Integrates sensors into auto alarm system
  • Transfers alarm to IP network via email and SNMP trap
price
12.000.000 IDR

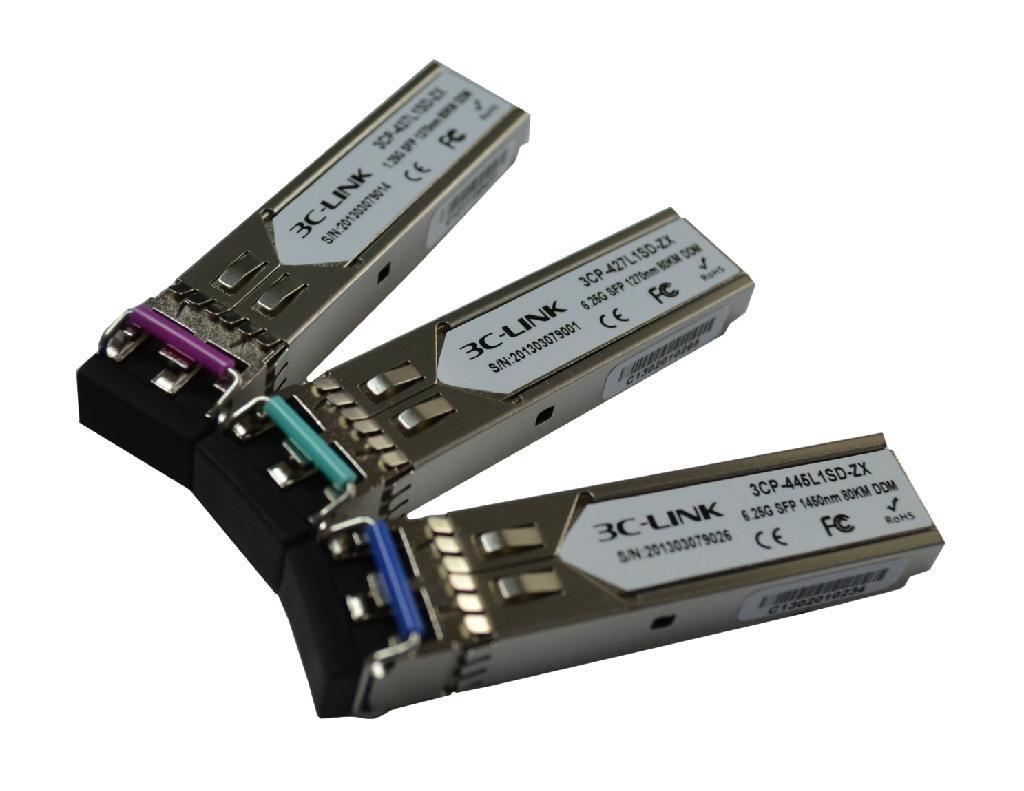

Quote:Original Posted By (SFP 3C-link)


Jual Planet Switch-M dan Core switch

untuk SFP, coba jelaskan terlabih dahulu kebutuhannya seperti apa agar bisa langsung tepat

500.000 IDR
*note: harga bisa berubah karena disesuaikan dengan kebutuhan


Quote:Original Posted By (quote)

description :
barangnya sekelas dengan cisco dengan harga yang lebih terjangkau dari cisco tentunya,
beminat hubungi (08979027368) Aulia
terima kasih
