WTS MOTHERBOARD MSI G31TM-P31
Kondisi Barang : Bekas
Harga : Rp 300.000
Location : DKI Jakarta
emoticon-Sundul Pagi... Misi gan2 mau jual Mobo MSI G31TM - P31 harga 300rb Barang masih Ok Belum lama ane pake kalo agan mau ane kasih bonus casing nya alasan Ane Jual Udah ada Notebook jadi nganggur untuk spek di bawah ini yah gan :

CPU
Intel® Core 2 Quad, Core 2 Duo, Pentium and Celeron in the LGA775 package.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset
• Intel® G31 Chipset
- Supports FSB 800/1066/1333/1600* (OC) MHz.
- Supports dual channel, DDR2 667/800.
- Integrated Intel Graphics Media Accelerator (Intel® GMA 3100)
- Max. resolution:2048x1536X32bpp, Horizontal:127.5KHz Vertical:75Hz

• Intel® ICH7 Chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports.
- 4 SATA ports with transfer rate up to 3Gb/s.
- PCI Master v2.3, I/O APIC.

Main Memory
• Supports two unbuffered DIMM of 1.8 Volt DDR2 DRAM
• Supports up to 8GB memory size.
• Supports dual channel DDR2 memory architecture.
• Supports DDR2 667/800 memory interface.
• Due to the limitation of G31 chipsets, dual channel support must meet some requirement in the specification of memory modules. please refer to Test Reports for detailed description.

Slots
• 1 x PCI Express x16 slot (PCI Express Bus SPEC V1.0a compliant)
• 2 x PCI slots (support 3.3V/ 5V PCI bus Interface)

On-Board IDE/SATA
• One Ultra DMA 66/100 IDE controller integrated in ICH7
- Supports PIO, Bus Master operation modes.
- Can connect up to two Ultra ATA drives.

• SATA controller integrated in ICH7
- Up to 3Gb/s transfer speed.
- Supports four SATA ports.

Audio
• Chip integrated by Realtek® ALC888S
- Flexible 7.1-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium SPEC

LAN
• Or Supports PCIE LAN 10/100 Fast Ethernet by 8103EL

On-Board Pinheaders/ Connectors

- ATX 24-pin power connector
- ATX 4-pin 12V CPU power connector
- CPU / System x 2 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- Chassis intrusion switch connector
- 2 x USB 2.0 connector support additional 4 ports
- 1 x Floppy disk drive connector
- 4 x Serial ATA II connectors
- 1 x ATA133 IDE connector
- Clear CMOS jumper
- 1 x Serial port connector
- 1 x SPDIF-out header
- 1 x Parallel port connector
- 1 x OC Switch

MSI Reminds You...
• The floppy disk cable will be optional.

Back Panel I/O Ports
- 1 x PS/2 keyboard
- 1 x PS/2 mouse
- 1 x Serial port (COM 1)
- 1 x Graphics Card port
- 1 x 3 in 1 audio jack
- 4 x USB 2.0 ports
- 1 x RJ45 LAN jack

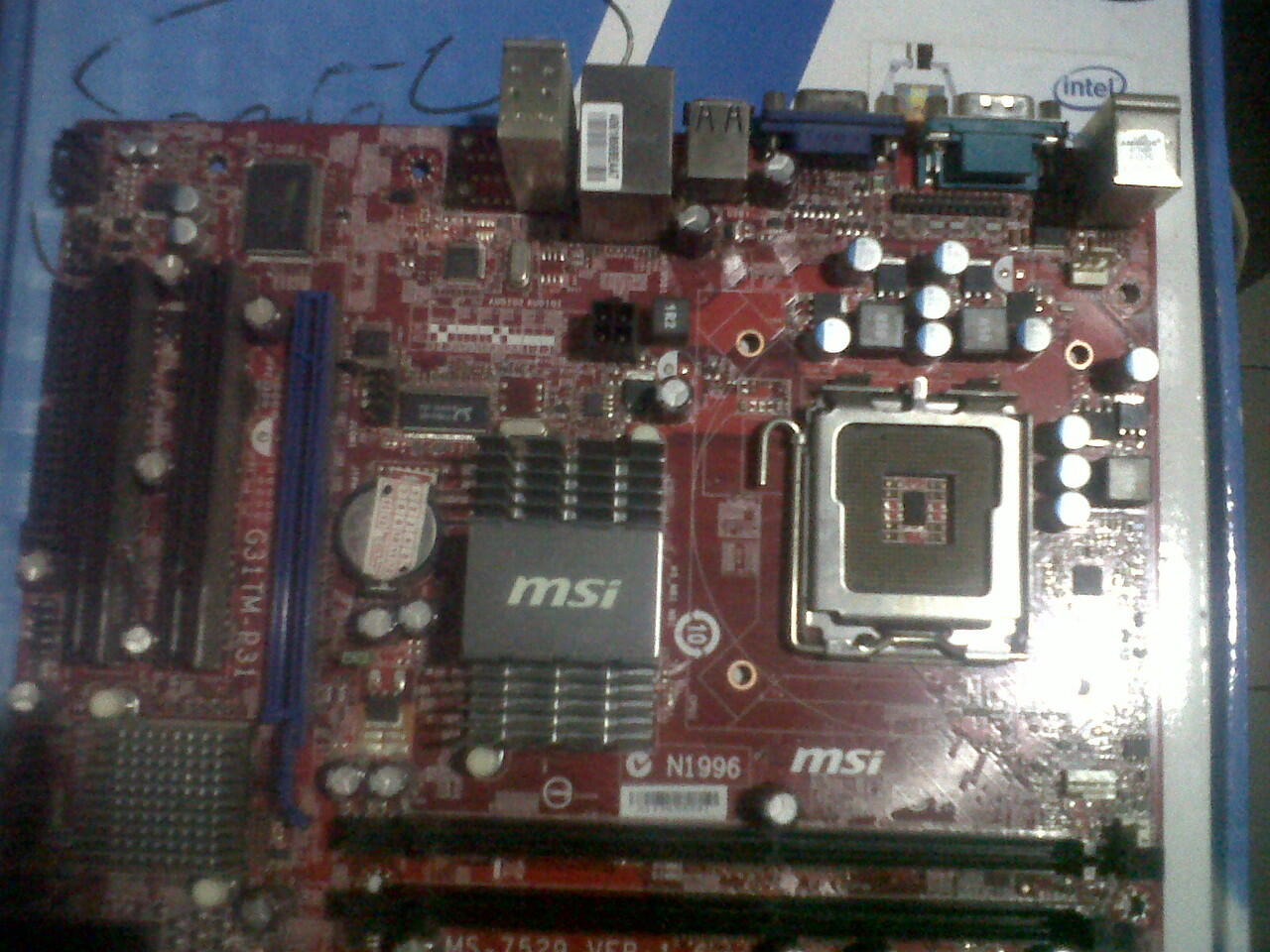

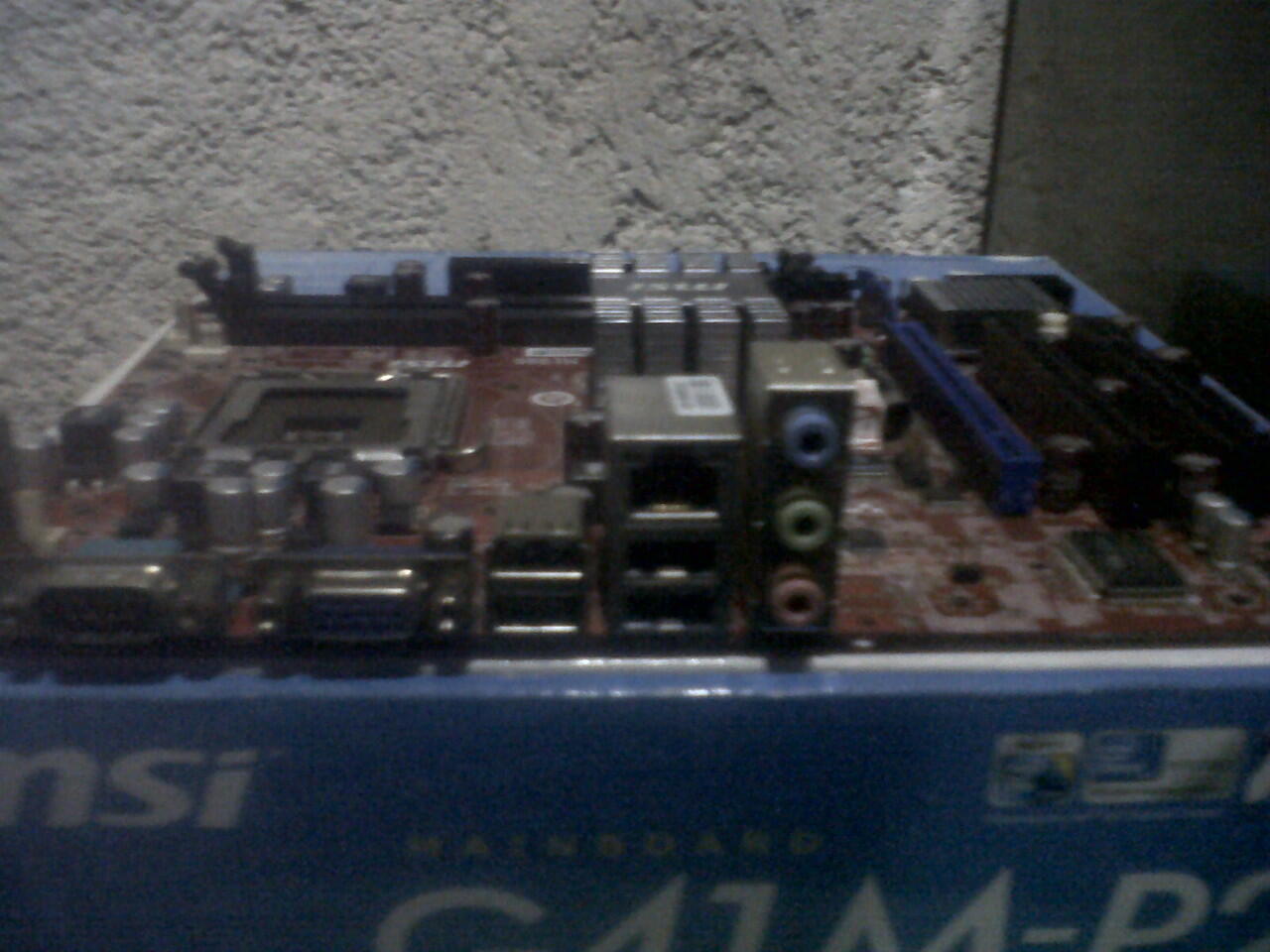

penampakan bisa di lihat di bawah ini :
WTS MOTHERBOARD MSI G31TM-P31 WTS MOTHERBOARD MSI G31TM-P31

KELENGKAPAN :

- Back Panel
- Kabel SATA
- Kabel IDE

minat contact ane gan :

Hp.085693106196/085219257200
Pin.214DEBED
WA.081905280987


COD sekitaran jakarta pusat di utamakan JL.Tanah abang 2,Thamrin city,Roxy Mas
Kirim2 Juga Ok Pake JNE

Untuk Yang Ingin Kirim Barang Sudah Ane Packing jadi tinggal kirim aja Monggo kali aja ada yang Butuh

Lapak ane yang lain bisa di lihat di sini http://www.kaskus.co.id/profile/view...sified/4824372


SOLD agan CiBUBUR
