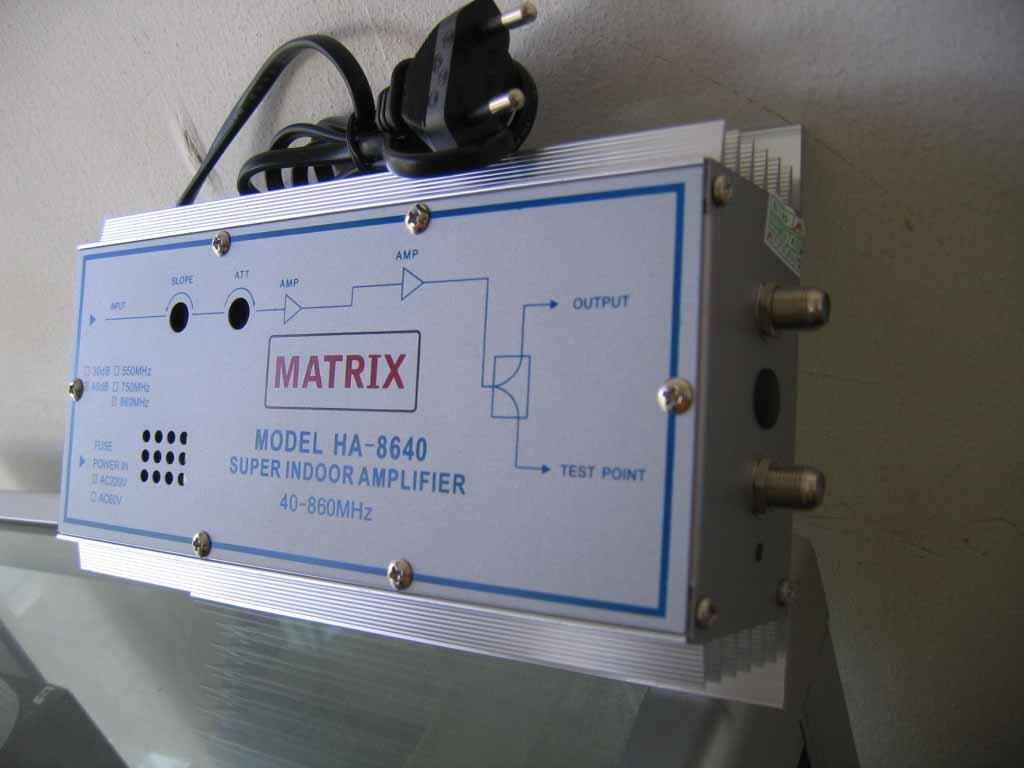

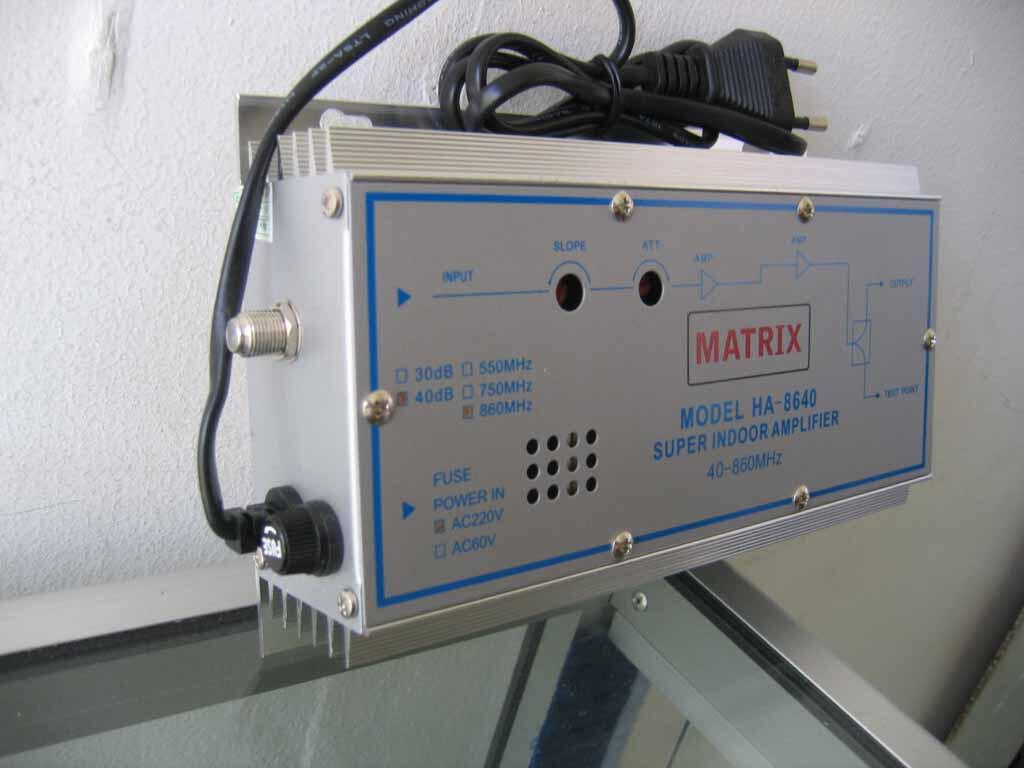

Boster Matrix
Kondisi Barang : Baru
Harga : Rp 450.000
Location : Jawa Timur
Untuk memperkuat signal( RF )Radio Frequensi siaran chanel TV ,seperti untuk CATV ,MATV seperti di hotel2.
]Boster MatrixBoster MatrixBoster Matrix

Power Supply : 200 ~ 240 vac
Connectors : F - type
Operating Temperature : - 10 ~ + 60°C
Ac Fuse : 1 Amp
Operation Frequency Range : 45 - 860 MHz
RF Amplification Device : IC Hybrid + Transistors Amplify
Gain Control : 0 ~ -20 dB Continuously Adjustable
Max Gain : 40 dB
Tilt Control 0 ~ -20 dB Continuously Adjustable
Gain Flatness : ± 0,75 dB ( 45 - 550 MHz )
± 1 dB ( 550 - 860 MHz )
Noise Figure : 8 dB Typical
Input Output Impedance : 75 ?
Input Output Test Point : -20 dB
Packing : 10set/ctn,22 kg
profile picture
Loading...
Mistermind
Loading...
emoticon-Sundul Upemoticon-Sundulemoticon-Sundulemoticon-Sundul Up
profile picture
Loading...
Mistermind
Loading...
Buat memperkuat signal dari modulator yang lemah untuk di bagikan ke TV -TV atau untuk kabel yang jaraknya cukup jauh
profile picture
Loading...
Mistermind
Loading...
up...up...up
profile picture
Loading...
Mistermind
Loading...
Untuk menguatkan signal dari output modulator supaya bisa jarak jauh dan untuk sharing banyak TV.
profile picture
Loading...
Mistermind
Loading...
sangat membantu, bagi yang signal dari modulatornya lemah.
